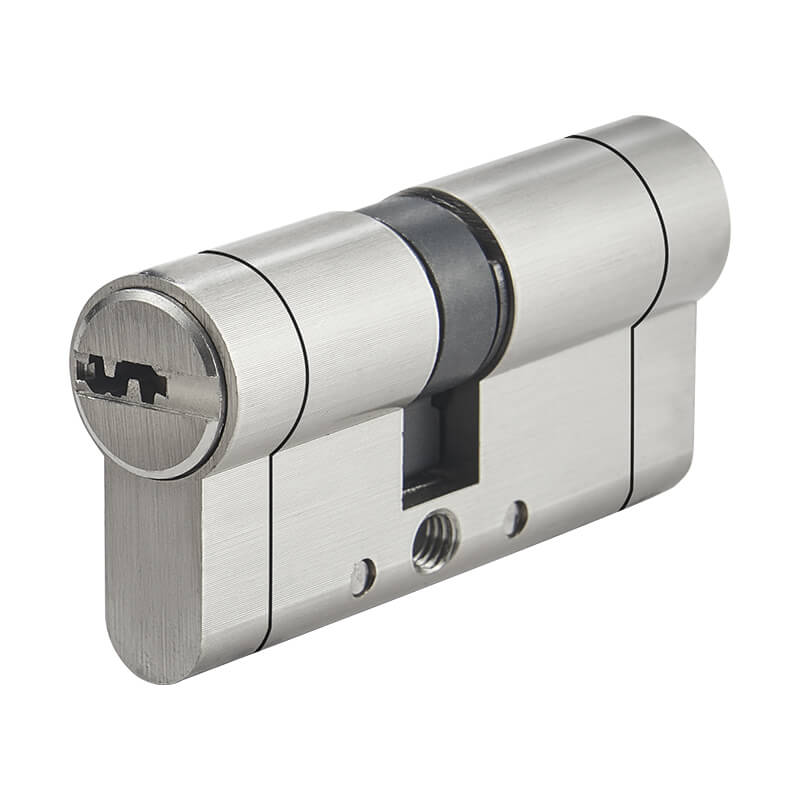

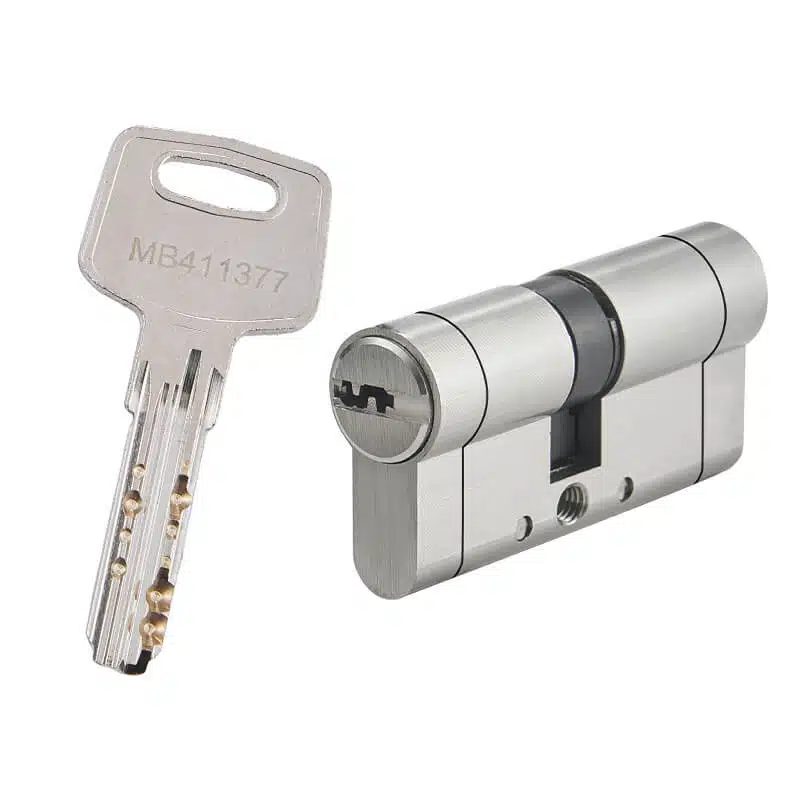

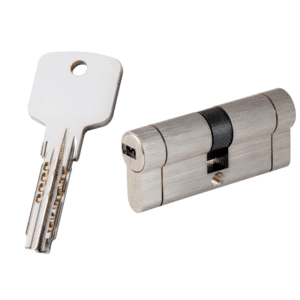

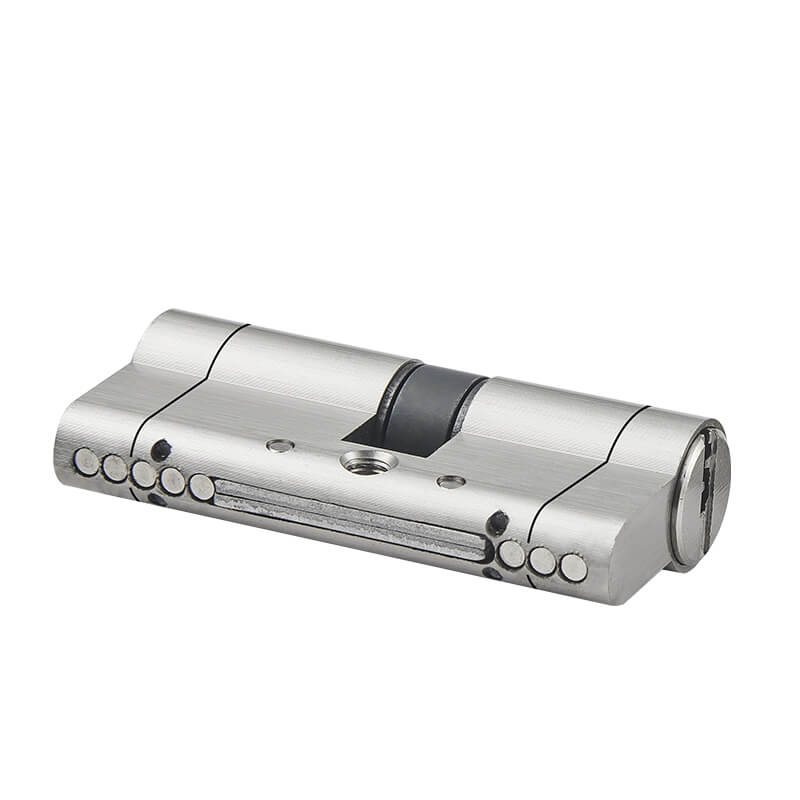

Best high security 3 star class C types of euro profile side pin brass key replacement cylinder lock for steel door
Master Key System
EOS secure are able to provide master key system for this cylinder. Meanwhile, if you have in-house locksmithes, you can assemble the master key system by using the accessories including master pins.
Learn more about our Master key system service.
Customization
EOS secure provides customization and design services to boost your business.
Small order
EOS secure provides small MOQ on our existing models for start-up customers or mock up samples for projects.
10 years of experience of master key system and security cylinders
Tsugami CNC Swiss-type automatic Lathe machine to guarantee the precision
Support your customize and Innovative design
Implement the strictest quality control

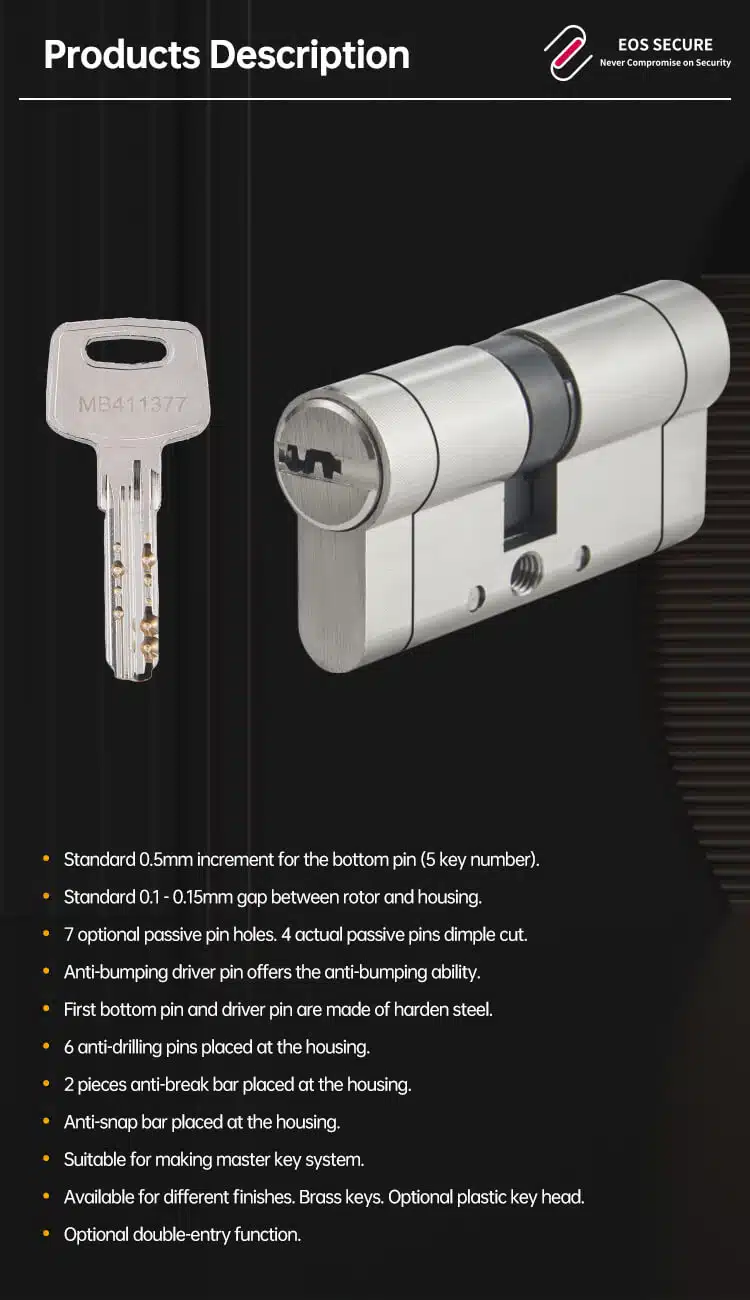

Standard 0.5mm increment for the bottom pin (5 key number).
Standard 0.1 – 0.15mm gap between rotor and housing.
7 optional passive pin holes. 4 actual passive pins dimple cut.
Anti-bumping driver pin offers the anti-bumping ability.
First bottom pin and driver pin are made of harden steel.

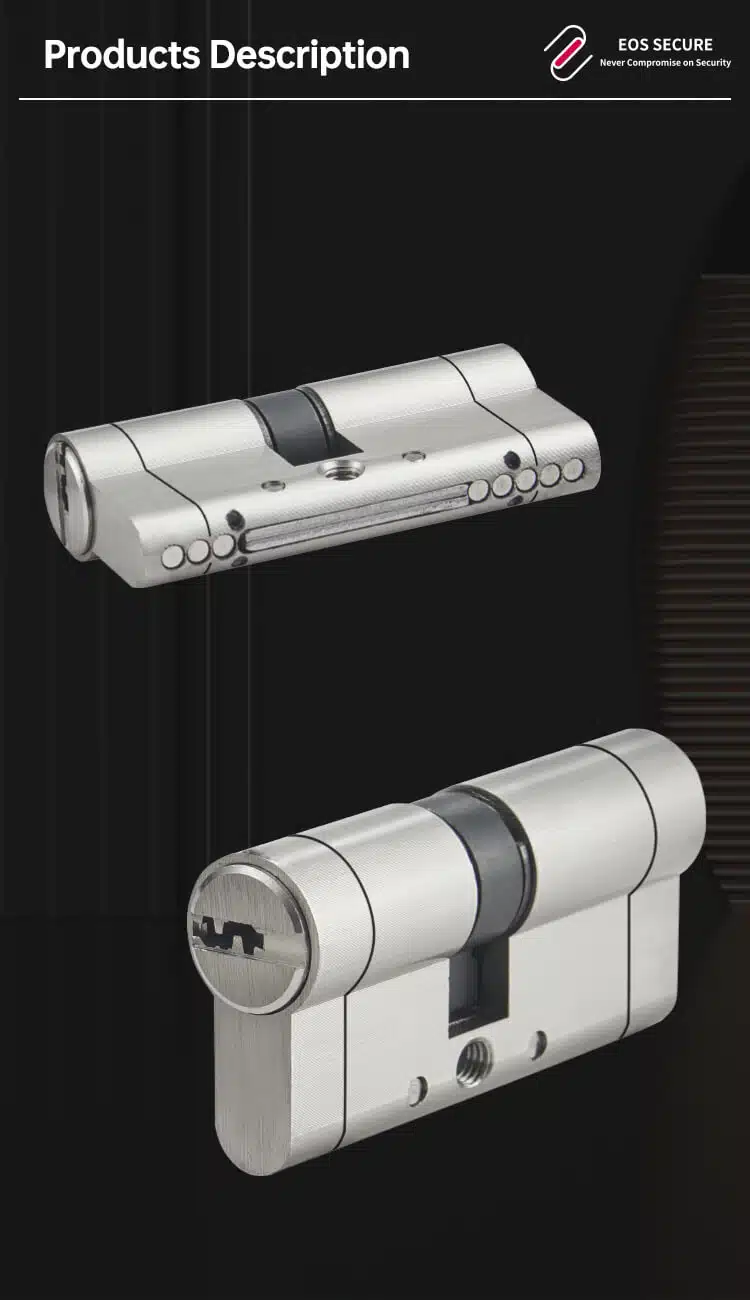

6 anti-drilling pins placed at the housing.
2 pieces anti-break bar placed at the housing.
Anti-snap bar placed at the housing.
Suitable for making master key system.
Available for different finishes. Brass keys. Optional plastic key head.
Optional double-entry function.
| Material of housing and plugs |
Brass |
|---|---|
| Material of keys |
Brass |
| Optional surface finishes |
SN, PB, SB, BLK, and so on |
| Dimension of housing |
33*17*10mm Din standard |
| Usage |
Making master locking system |
| Mutual opening |
No mutual open with only 1 number difference |
| Increment of bottom pins |
0.5mm(6 pins) |
| Passive pins holes |
7 option passive pin holes |
| Passive dimple cut |
4 actual passive pin dimple cut |
| Construction key |
Available |
| Master key system |
Available |
| Certification |
EN1303:2015 |
More Product You May Like
Master key system cylinders and Security cylinders manufacturer
Showing all 19 results
-
Active Pin and Magnet Passive Pin Lock Cylinder with Patent Moon Shape Passive Pins and Angle Anti-Pick Side Pins
-
Active Pin and Passive Pin Lock Cylinder with Patent Moon Shape Passive Pins and Wave Anti-Pick Pins
-
Telescopic Pin Lock Cylinder with Patented Move Element
-
Dimple Pin Lock Cylinder with Patented Move Element
-
Active Pin with Passive Pin Lock Cylinder with Patented Move Element and Anti Pick Slider
-
Master Key System Lock Cylinder with Patented Move Element
-
Double Row Dimple Pin Lock Cylinder with Patented Move Element
-
Security Hardened Steel Padlock Lock with Security Lock Cylinder
-
Patented slider high security anti pick side pin passive pin active pin european brass lock cylinder
-
High security euro anti breaking brass 70mm double clutch emergency cylinder lock
-
High security european profile anti breaking sacrificial cut brass nickel finish double open emergency security lock cylinder
-
Euro profile brass key telescopic pin lateral pin moving mobile floating pin lock cylinder
-
Double floating pins anti copy enhanced security entrance steel door lock cylinder
-
High security european profile shaft cylinder for steel security doors
-
High security european active pin and passive pin anti pick door cylinder lock
-
Best high security 3 star class C types of euro profile side pin brass key replacement cylinder lock for steel door
-
Hot selling best italian dimple key profile 60 anti snap sacrificial cut anti drill euro cylinder lock
-

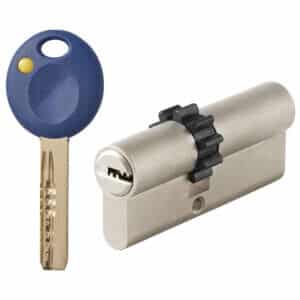

7×7 dimple cut computer key classic Isreal pearl nickel security double euro profile cylinder lock
-
